The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Cable Manager with AMPS Hole Pattern for Electronic Mounts

SKU Copied
SKU: RAP-403U
UPC Copied
UPC: 793442944208

RAM® Cable Manager with AMPS Hole Pattern for Electronic Mounts
Copy SKU
SKU: RAP-403U
Copy UPC
| UPC: 793442944208

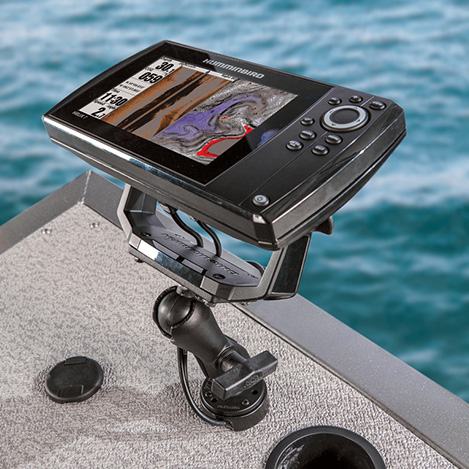

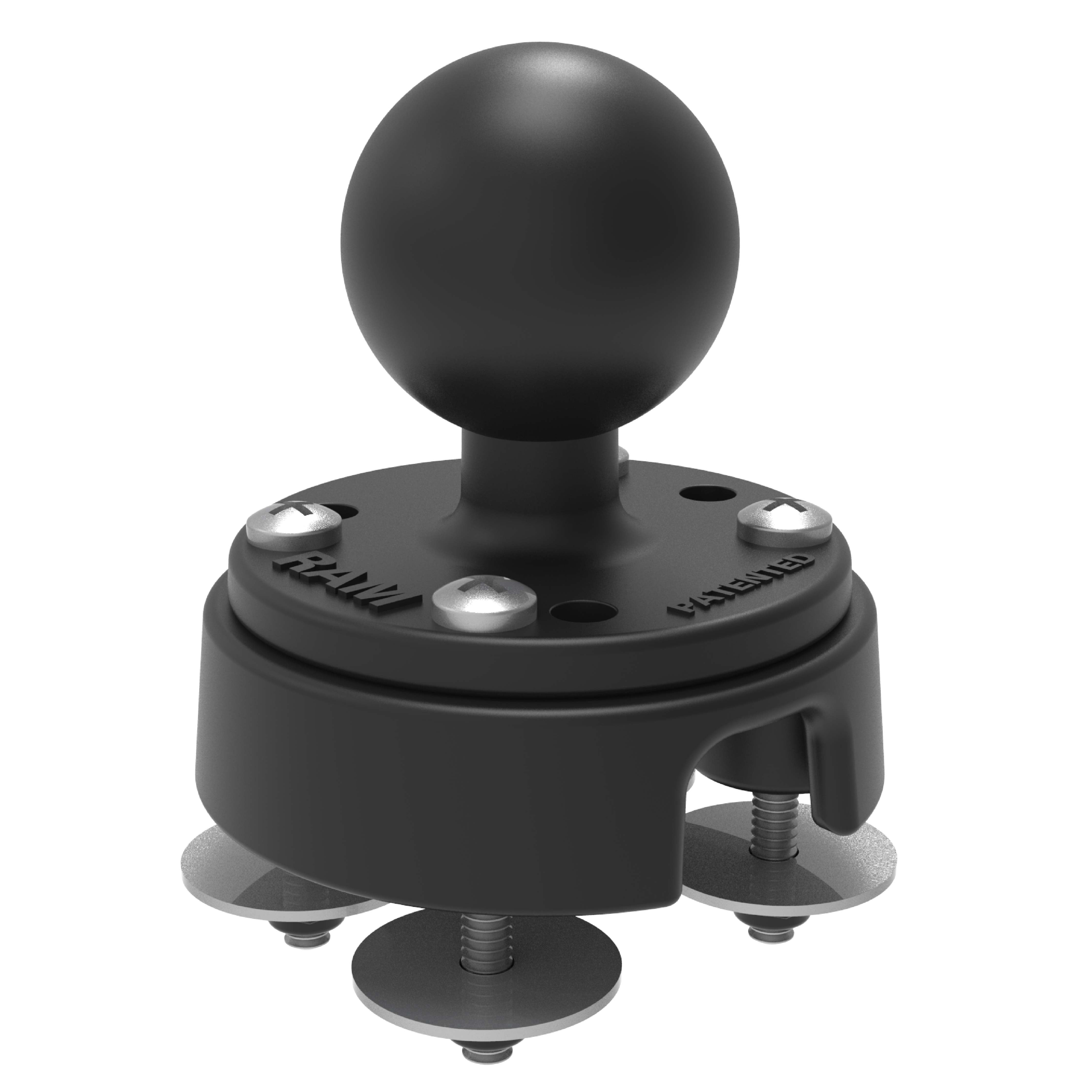

The RAM Cable Manager creates an integrated route for electrical wiring and cleanly covers installation holes. A great addition to any surface mounting application. The RAM Cable Manager is made of glass filled nylon which has the benefit of creating a barrier between the RAM Surface Mount and the attachment area; minimizing vibration while reducing fiberglass and gel-coat damage. This item will work with any of the 2 12.70 cm (5")/20.32 cm (8") round plates with AMPs hole pattern.

Features
  • Includes 4-hole AMPS pattern mounting holes for RAM® drill-down bases

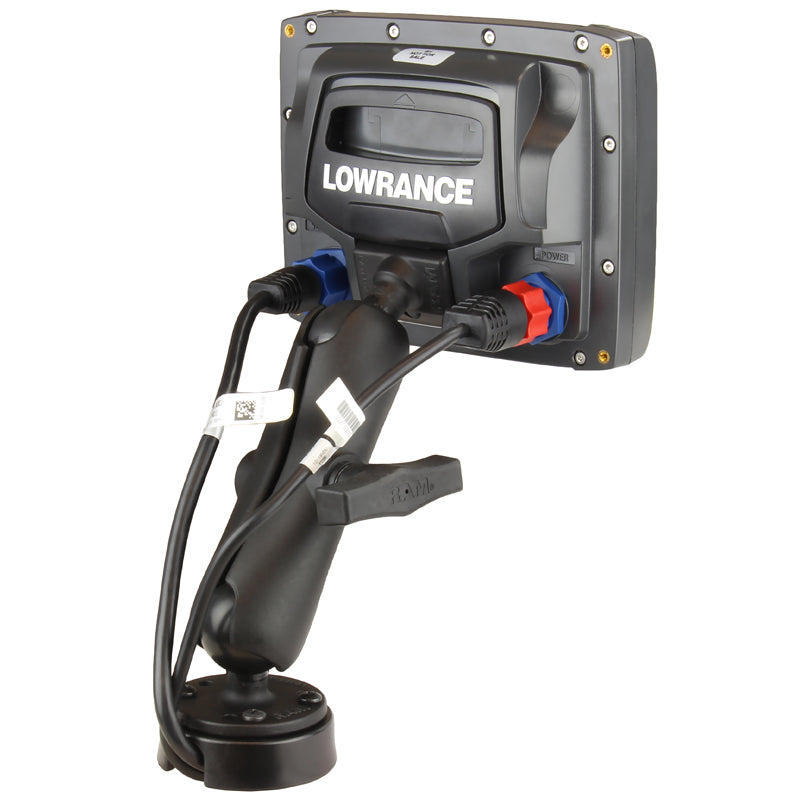

  • 1.42 cm (0.56") X 1.78 cm (0.7") side cutout allows for routing cables from the power source to the mounted device
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.11 kg (0.25 lbs)
Hardware Included
(4) #10-24 x 5.08cm (2") Machine Screws(4) #10-24 Nylock Nuts(4) #10 Fender Washers
Product Dimensions
Cable Slot Height: 1.42cm (0.56") Cable Slot Width: 1.78cm (0.7")
Clamp Range
Max mounting surface thickness: 1.73cm (0.68")

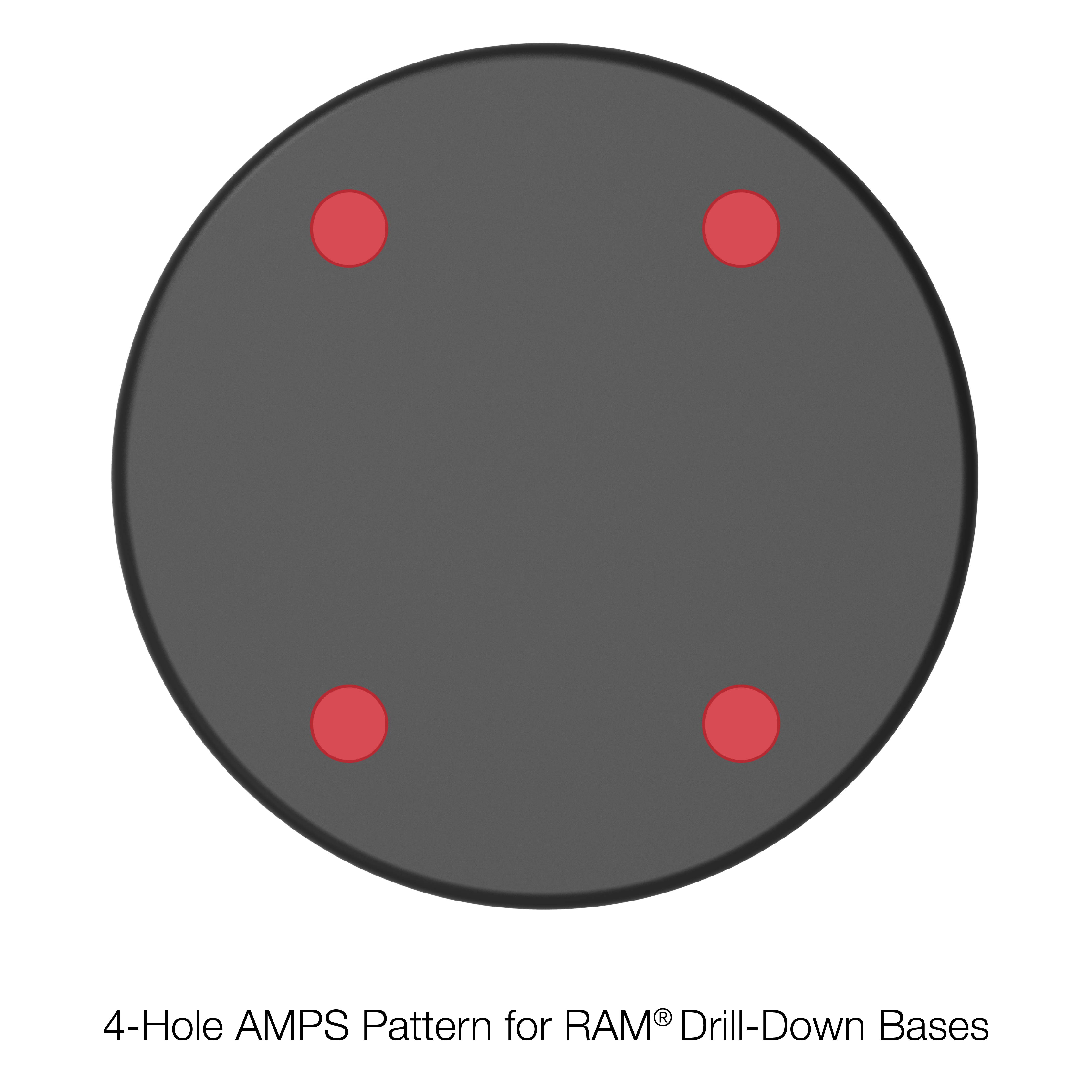

Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAP-403FU
RAM® Spacer Plate Accessory for Flush Mounting


Complete Your Solution

RAM® Mount Bases with AMPS Hole Pattern

RAM Mounts
Copy SKU
RAM-202U
RAM® Round Plate with Ball - C Size
RAM Mounts
Copy SKU
RAM-347U
RAM® Ball Adapter with AMPS Plate - C Size
RAM Mounts
Copy SKU
RAM-B-202U
RAM® Round Plate with Ball - B Size
