The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® ATV/UTV Double Ball Rail Mount for Garmin nuvi 1300 Series + More

SKU Copied

SKU: RAM-B-149Z-2-GA34

UPC Copied

UPC: 793442941573







RAM® ATV/UTV Double Ball Rail Mount for Garmin nuvi 1300 Series + More

Copy SKU
RAM-B-149Z-2-GA34 SKU: RAM-B-149Z-2-GA34

Copy UPC
793442941573 | UPC: 793442941573

B SIZE

MEDIUM ARM

Size Guide

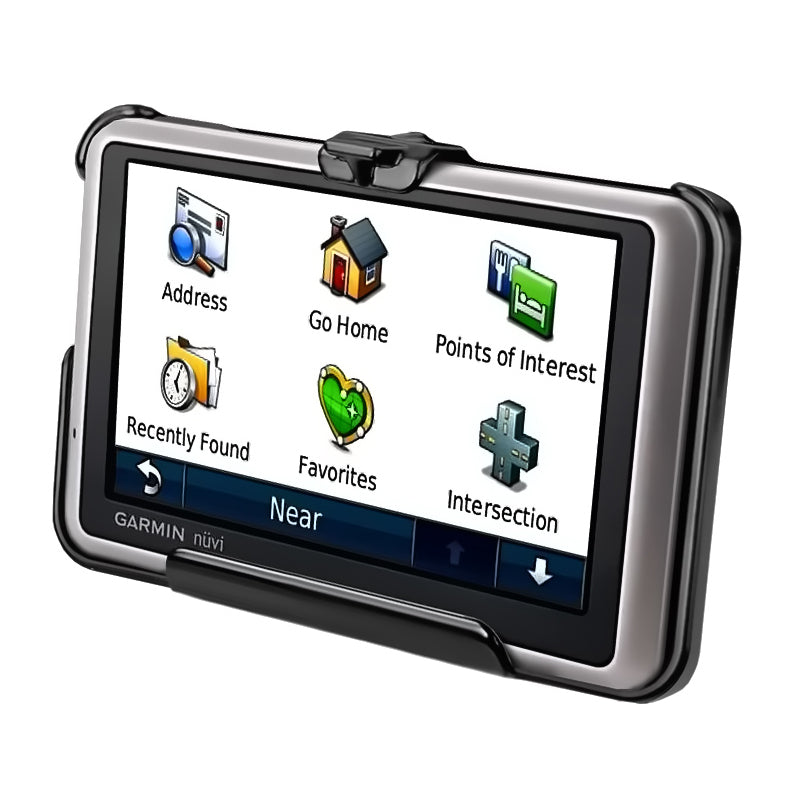

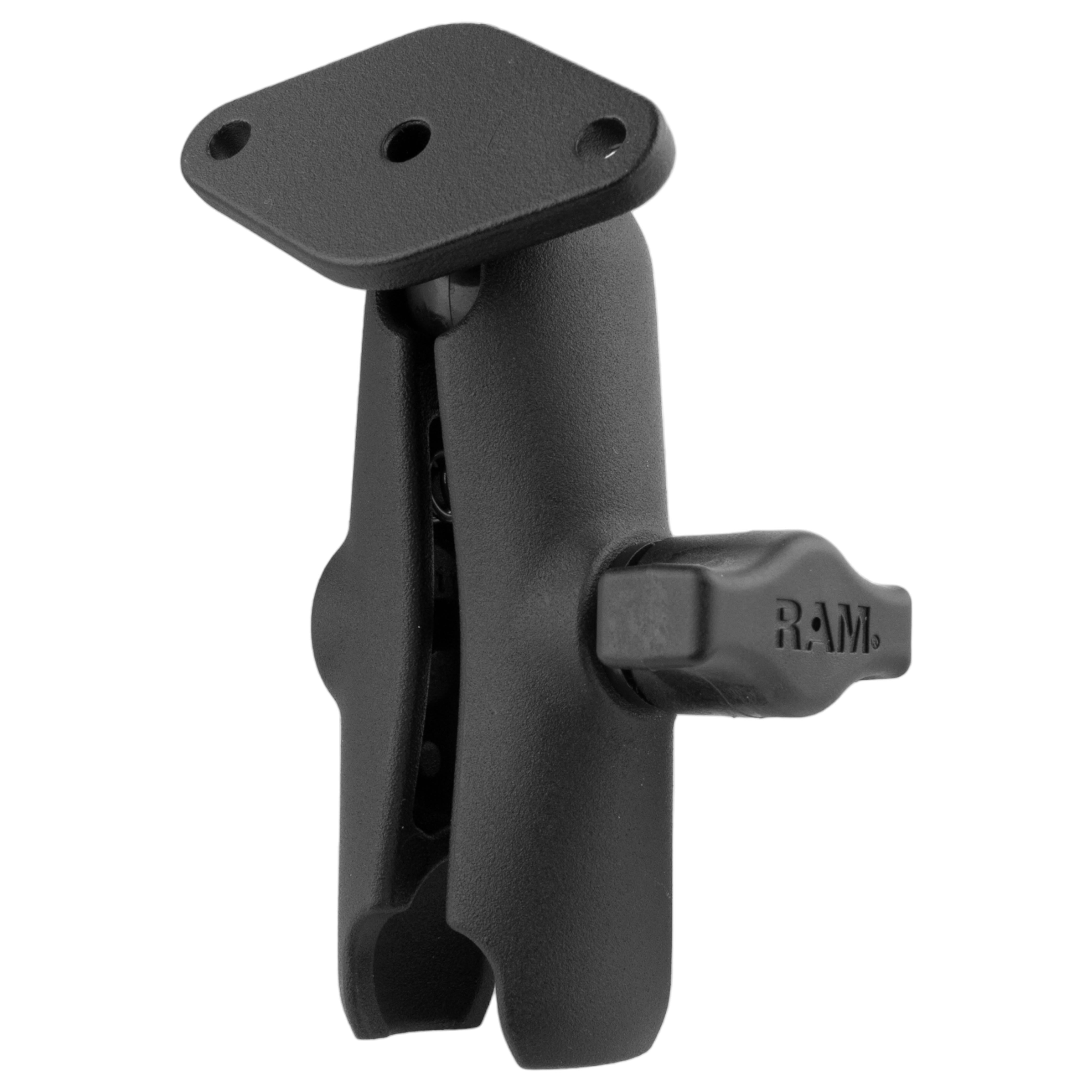

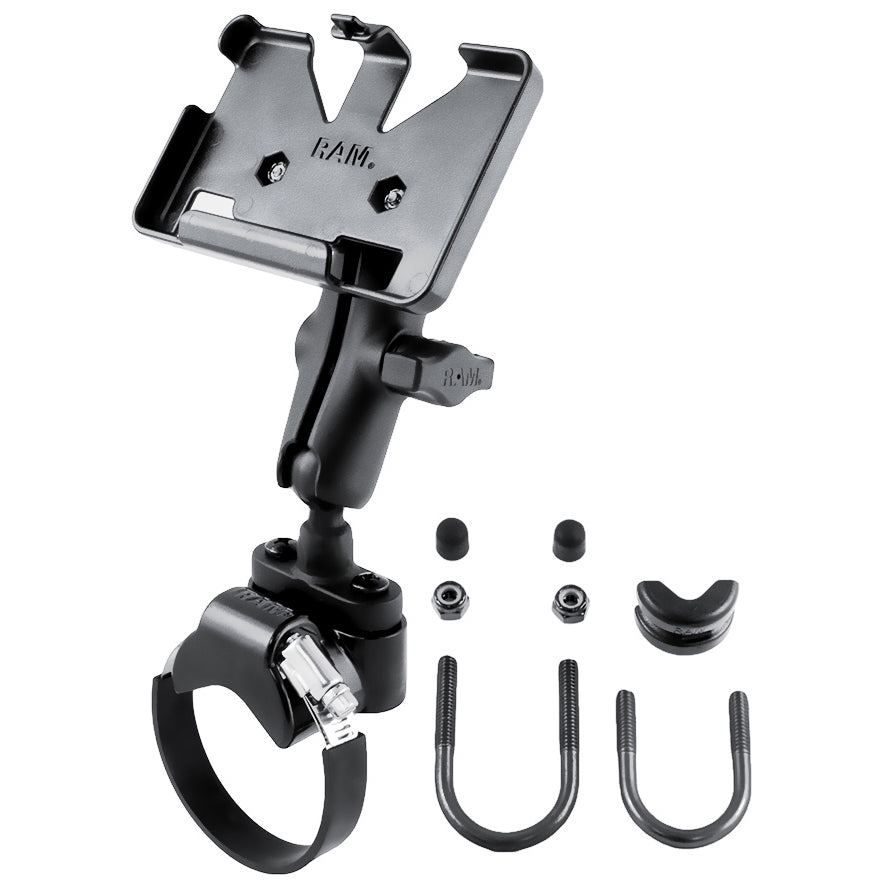

The RAM-B-149Z-2-GA34 consists of a B-size medium length double socket arm, our RAM ATV/UTV Ball Base for Rails up to 8.00cm (3.15") in Diameter, and form fitting cradle for several Garmin Nuvi devices. A complete list of compatible devices can be found below in the compatibility section.

Information

Compatible Devices

Information

Product Weight

0.51 kg (1.13 lbs)

Hardware Included

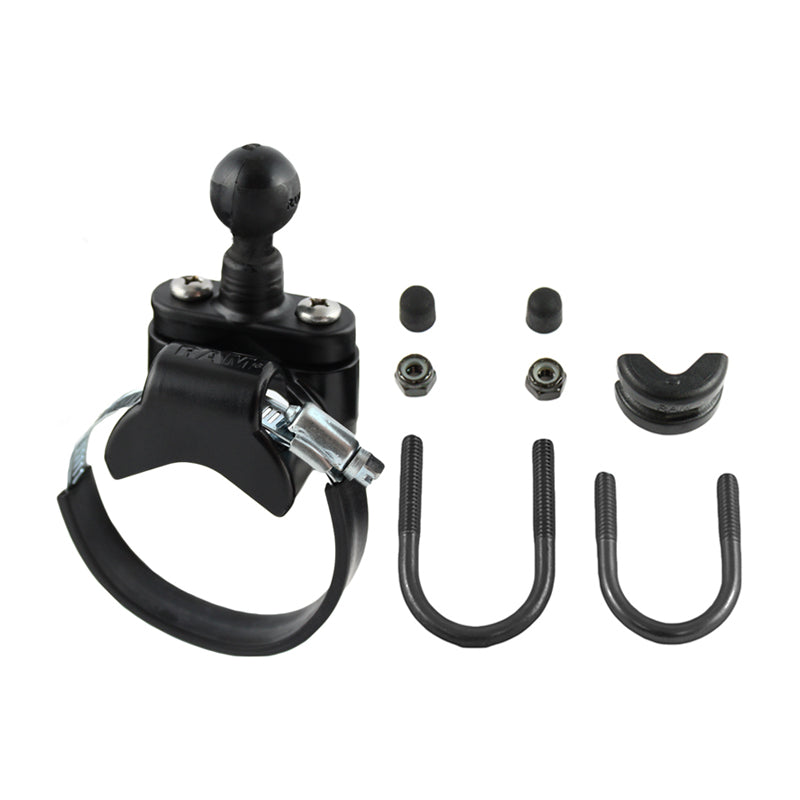

Assembly Hardware(1) Strap Clamp Adapter(2) 1/4" -20 x 2.54cm (1") Machine Screws(2) 1/4" -20 Nylock Nuts(1) Zinc Worm Drive Strap Clamp(1) 15.24cm (6") Rubber Strip(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) Rubber Caps(1) U-Bolt Spacer

Clamp Range

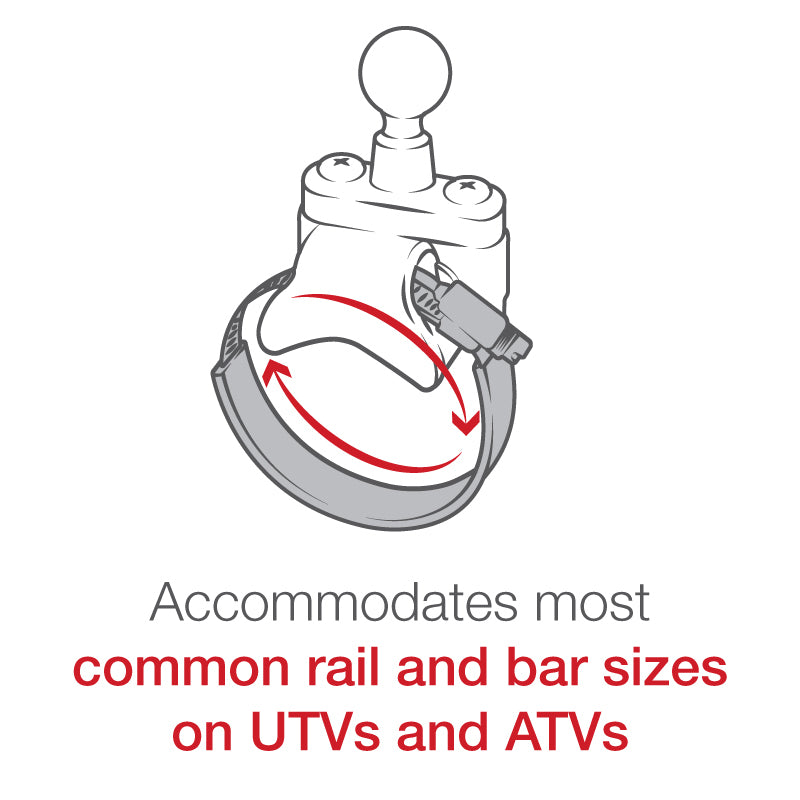

U-Bolt: 1.27cm (0.5") - 3.18cm (1.25") diameterStrap Clamp: 3.99cm (1.57") - 8.00cm (3.15") diameter

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite

Packaging Type

Retail Bag
