World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® 6" Single Swing Arm with Swivel Socket

SKU Copied
SKU: RAM-VB-110-5NBU
UPC Copied
UPC: 793442924491
01 29 231002ram Vb 110 5nbu1jpg

RAM® 6" Single Swing Arm with Swivel Socket
Copy SKU
SKU: RAM-VB-110-5NBU
Copy UPC
| UPC: 793442924491

Information

Information

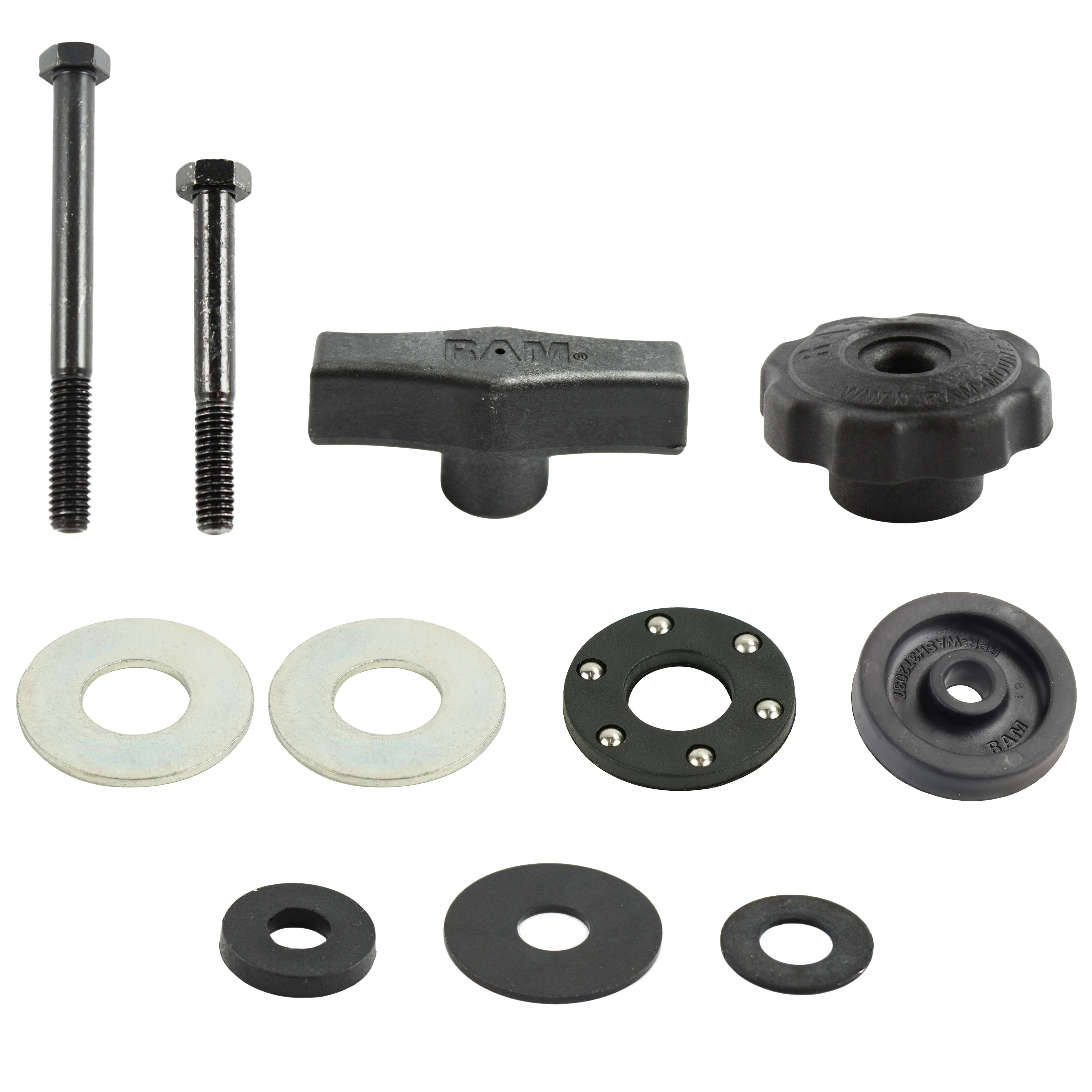

Hardware Included

(1) 7.62 cm (3")/20.32 cm (8") -16 x 10.16cm (4") Hex Bolt
(1) 5.08cm (2") Rubber Washer
(1) 3.18cm (1.25") Fender Washer
(2) Steel Washers
(1) Thrust 6-Bearing Washer
(1) 7.62 cm (3")/20.32 cm (8") -16 Knob

Product Dimensions

Swing Arm Length: 15.24cm (6")

Ball Size

C Size ( 3.81cm (1.5") )

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

0.60 kg (1.33 lbs)
