GDS® View™ 13.3" Touch Screen Monitor

SKU Copied
SKU: RAM-GDS-MON-13-1
UPC Copied
UPC: 793442008481

GDS® View™ 13.3" Touch Screen Monitor
Copy SKU
SKU: RAM-GDS-MON-13-1
Copy UPC
| UPC: 793442008481

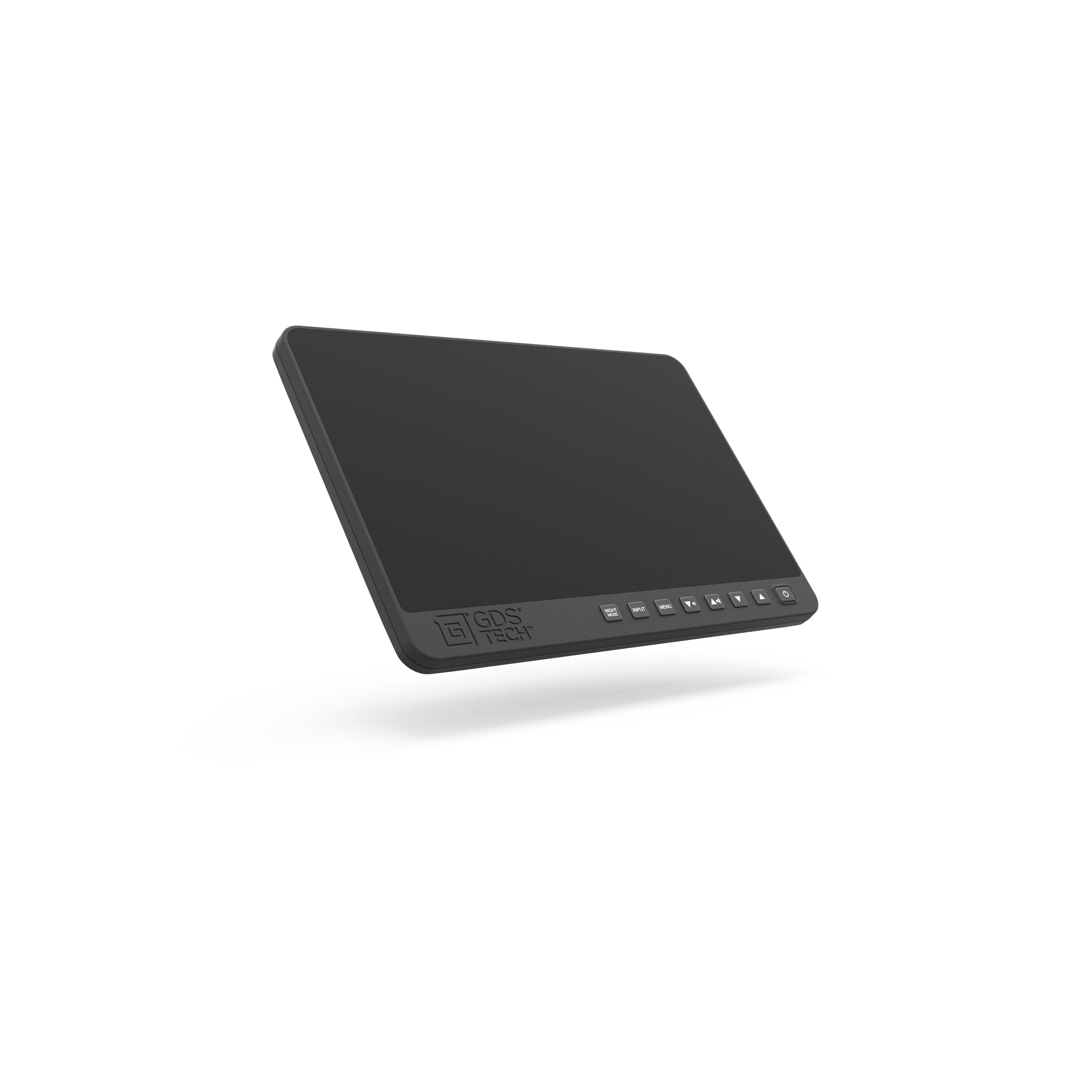

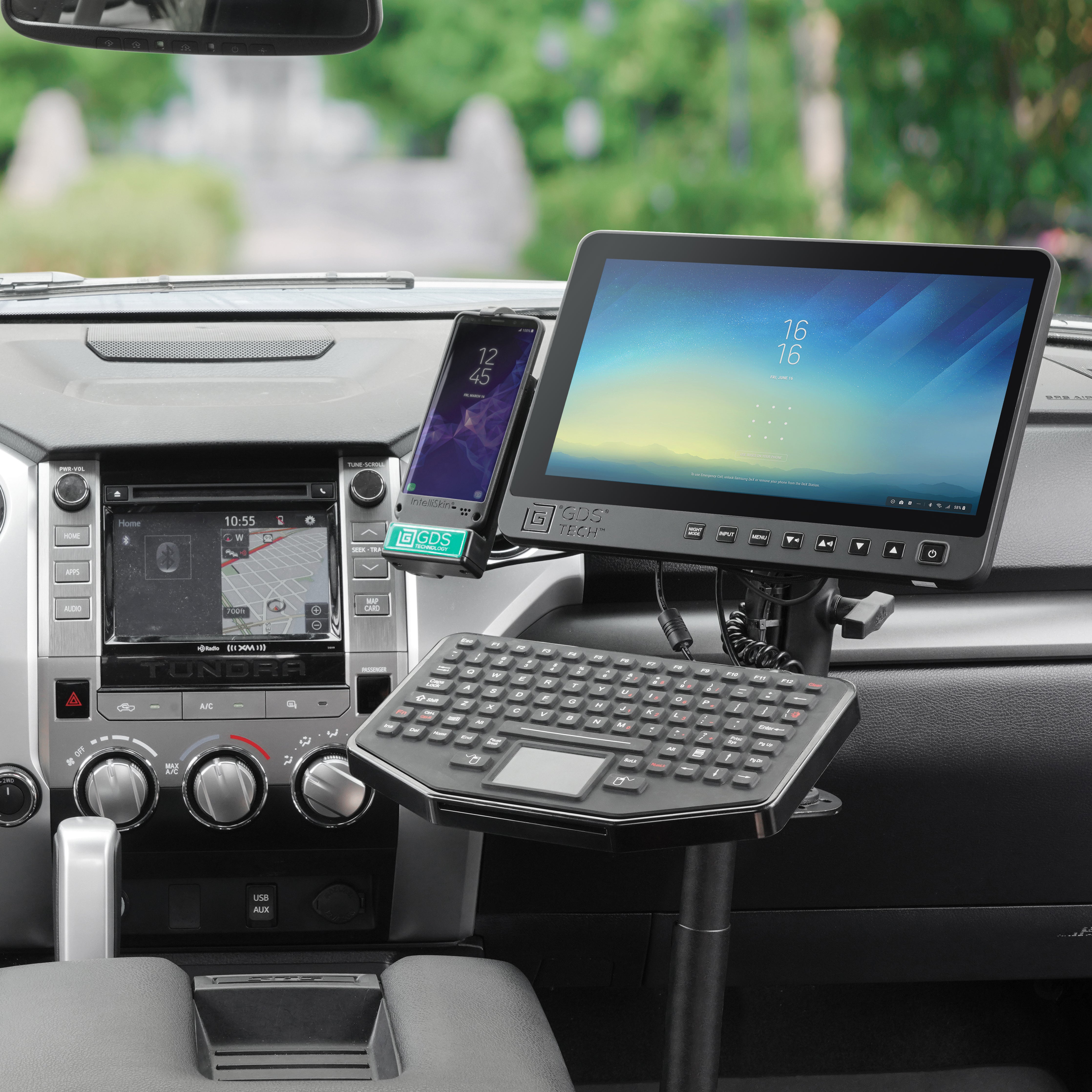

The GDS View 13.3 touchscreen monitor lets you take the PC experience on the road. Featuring VESA hole patterns compatible with the RAM-2461U and RAM-D-2461U mounting plates, create a mobile workstation that takes advantage of the GDS Ecosystem for data sync and charging capabilities. The GDS View monitor has undergone MIL-STD-810H 514.5 vibration testing, ensuring performance in the most demanding environments. This two-point capacitive touchscreen monitor allows you to pinch, zoom, and select and includes an anti-glare and anti-fingerprint treatment. Control buttons on the front of the monitor are easy to access, while a red monochrome night mode helps to reduce eyestrain. In addition, two integrated 2W speakers allow for audio. Includes HDMI, VGA, three USB-A Ports, one USB-B Port, and USB Type-B to USB Type-A cables. Always Protected. Always Connected.

Features
  • Two-point capacitive 33.78cm (13.3") touch screen monitor with anti-glare and anti-fingerprint treatment
  • MIL-STD-810G 514.5 vibration tested to ensure performance in the most demanding environments
  • Includes 75 x 75mm VESA hole pattern for attachment to compatible RAM® ball plates; double ball and socket technology allows for ideal placement
  • Backed by a 1-year warranty

Information

Resources

Information

Product Weight
2.80 kg (6.17 lbs)
Hardware Included
(4) #10-24 x 12.70 cm (5")/20.32 cm (8") Machine Screws(4) #10 Stainless Steel Washers(4) #10 Lock Washers(1) HDMI Cable(1) VGA Cable(1) USB Type-B to USB Type-A CableVehicle hardwire and cigarette lighter chargers
Monitor Specifications
Screen Size: 33.78cm (13.3") Anti-glare and Anti-fingerprint treatment applied on LCDMax Resolution: 1920 x 1080 high resolutionAspect ratio: 16:9Tough Panel: 2-point capacitive touchAudio: (2) 2W SpeakersBrightness: 800nitsContrast ratio: 1000:1Red monochrome night mode to reduce eye strain for night viewingControl buttons on front of monitor for easy accessZip tie attachment loops for cable management
Hole Pattern
75 x 75mm VESA
Packaging Type
Retail Box
Input Voltage
10-30VDC
Ports

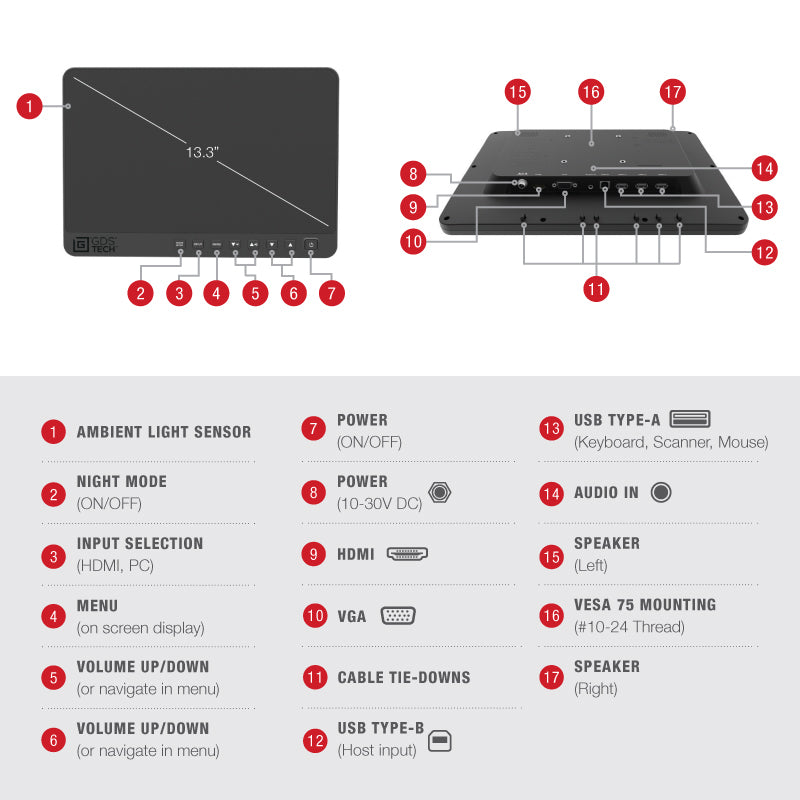

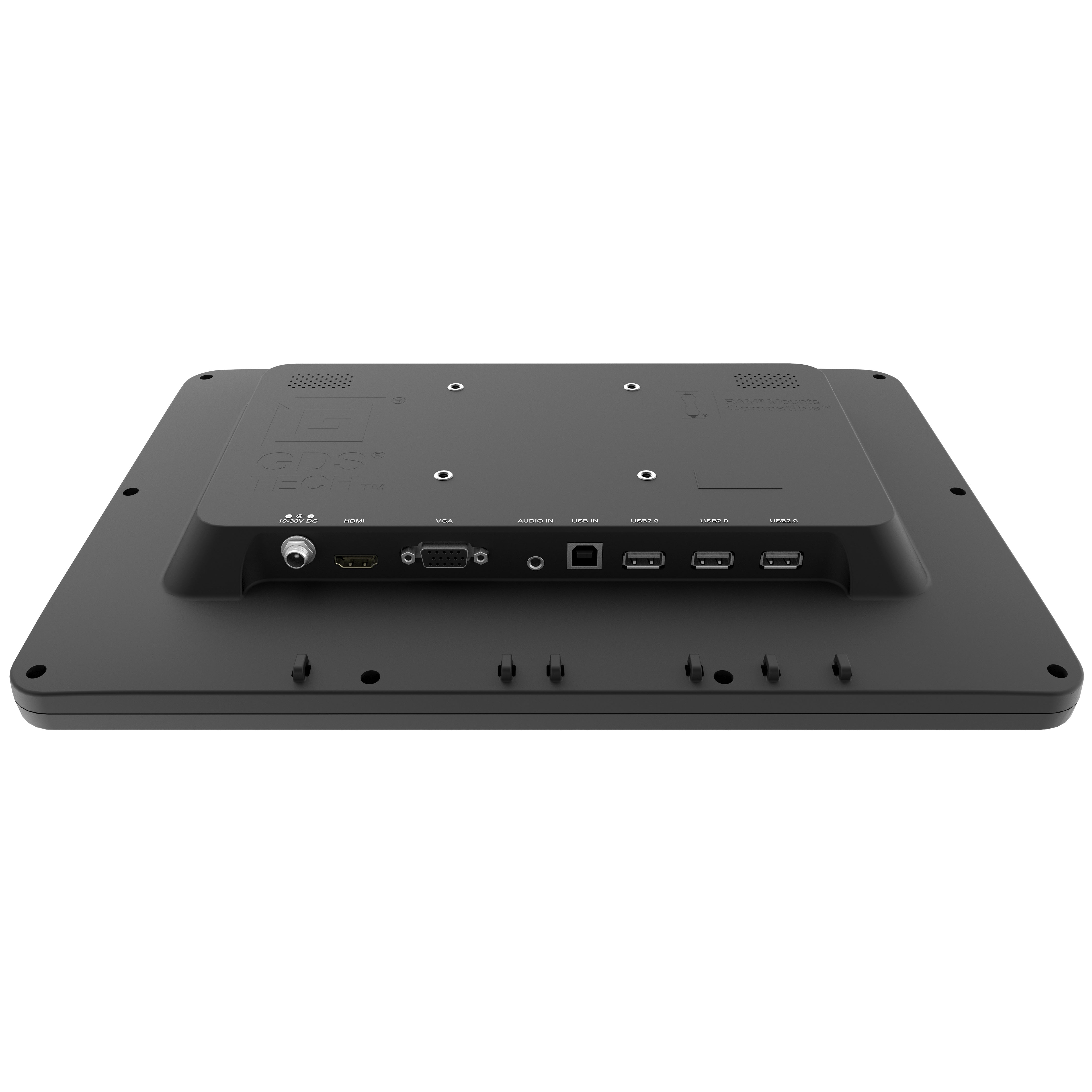

(1) Power Input(1) HDMI(1) VGA(1) 3.5mm Audio Output(1) USB Type-B (Host Input)(3) USB Type-A (Peripheral Outputs)
Regulatory
Meets SAE J-1113Integrated Short Circuit Protection (SCP)
Certifications
MIL-STD-810H 514.5 Vibration TestedFCC, CE, IC, RCM, WEEE, E-Mark, ISO 7637-2, and RoHS
