World-Class Mounting Systems

Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5

SKU Copied

SKU: RAM-GDS-U1-SAM90-KIT5

UPC Copied

UPC: 793442023415







GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5

Copy SKU
RAM-GDS-U1-SAM90-KIT5 SKU: RAM-GDS-U1-SAM90-KIT5

Copy UPC
793442023415 | UPC: 793442023415

C SIZE

SHORT ARM

Size Guide

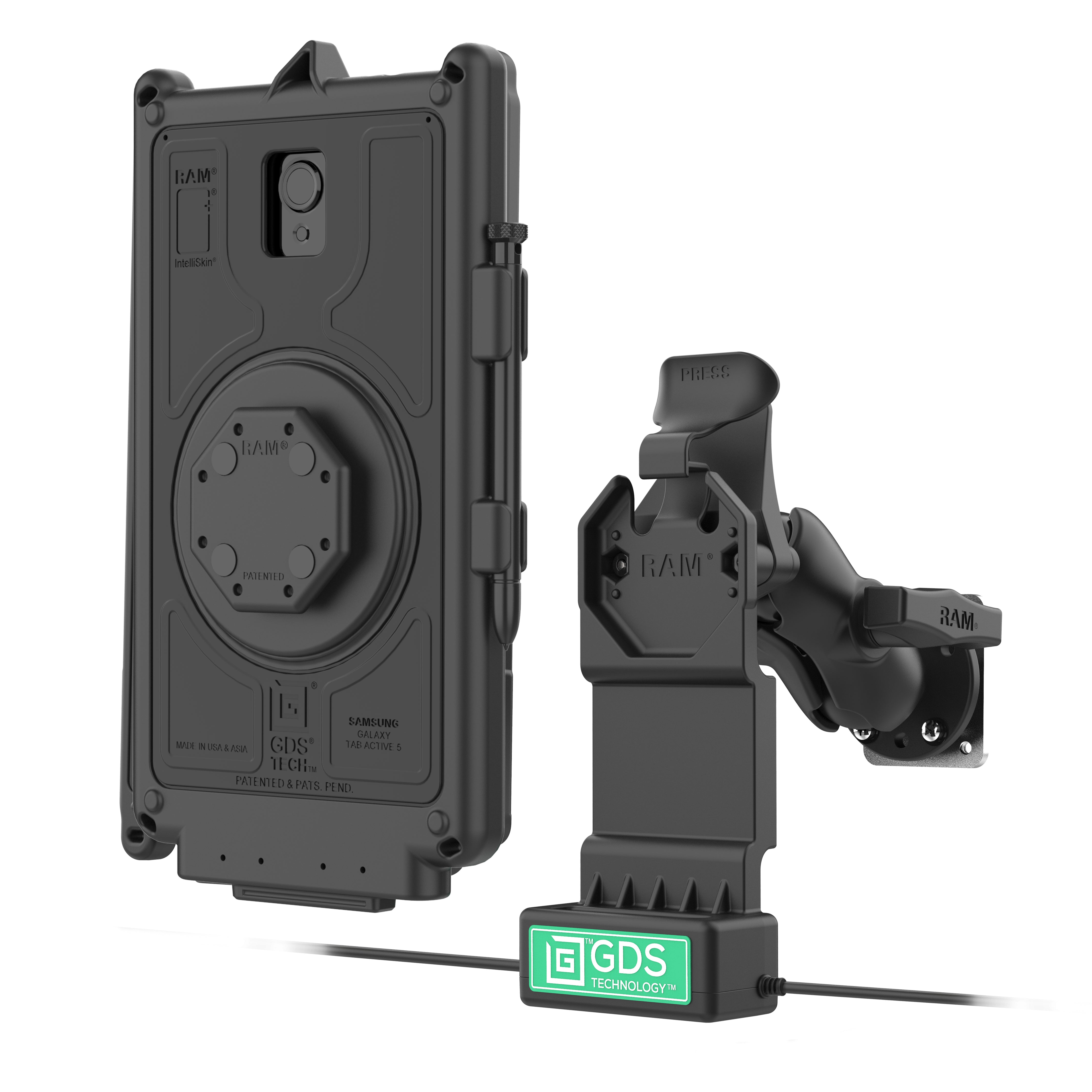

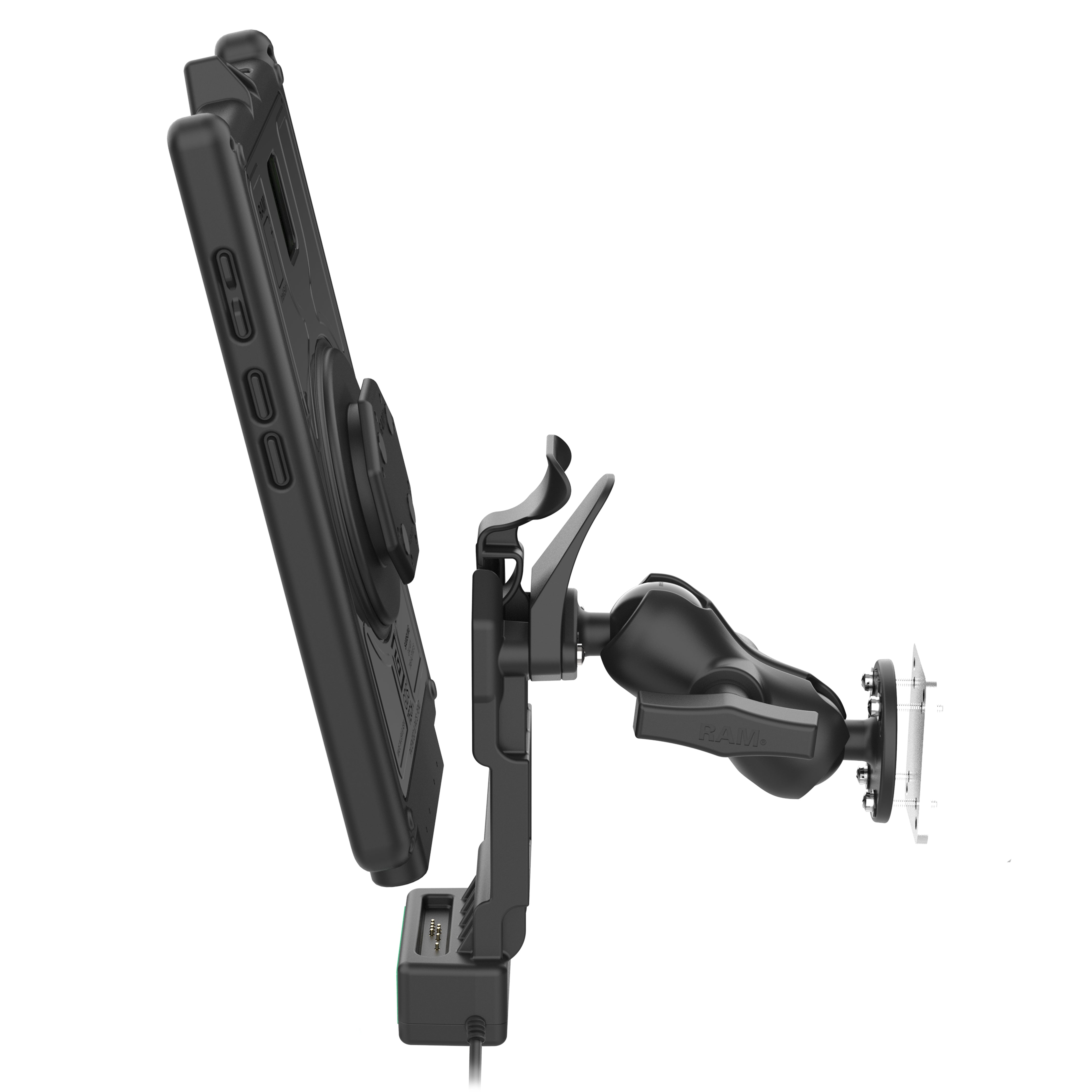

The GDS Uni-Conn Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT5) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS Uni-Conn dock, Uni-Conn adapter, IntelliSkin for the Tab Active5, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS Uni-Conn is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All

Features

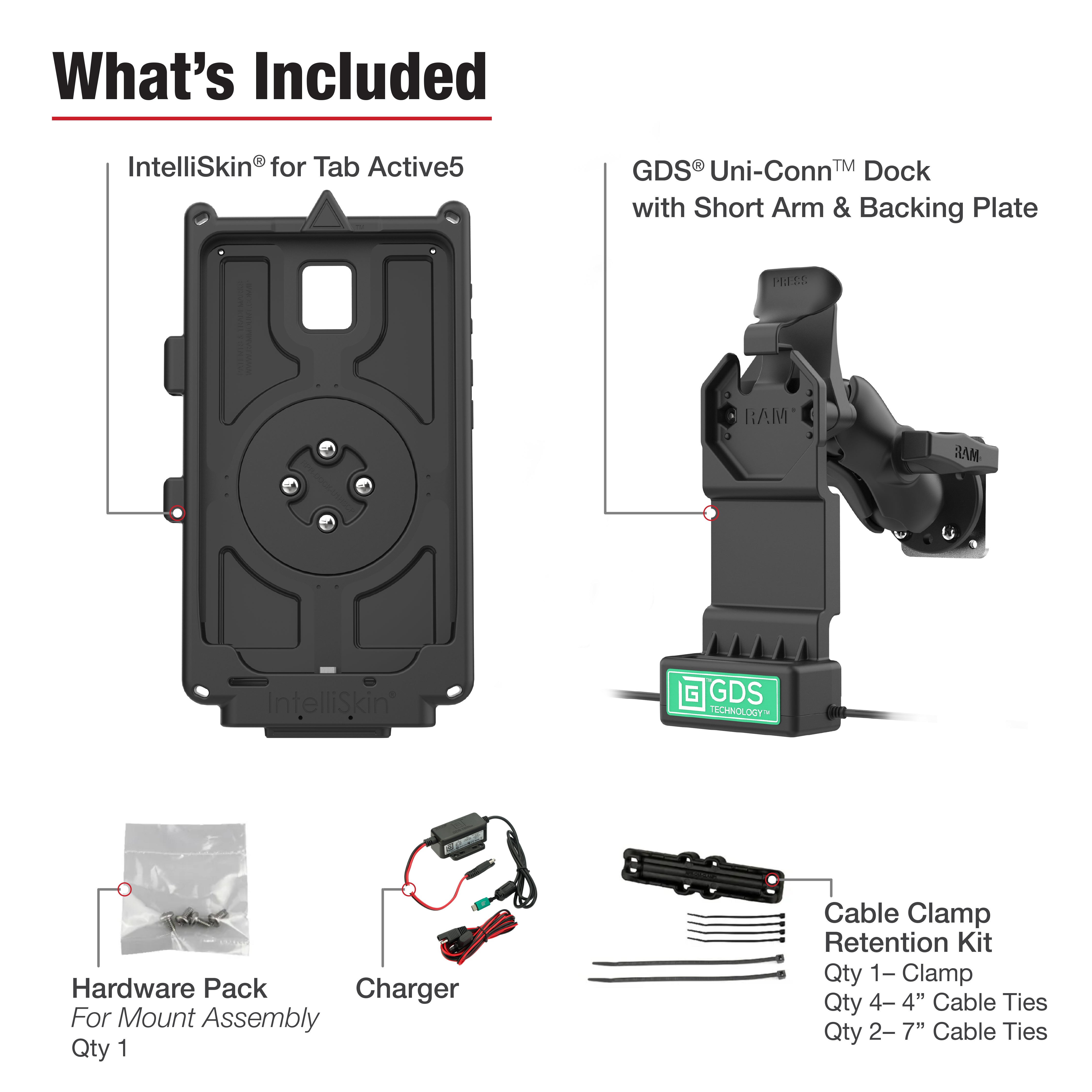

Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with short arm, backing plate adapter, and cable clamp
Dock features GDS® Technology™ for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
Uni-Conn™ dock features an easy device insertion and removal
Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Product Weight

1.33 kg (2.93 lbs)

Hardware Included

Assembly Hardware(1) 5.33 cm (2.10") X 6.60 cm (2.60") Steel Backing Plate(4) #8-32 x 2.54cm (1") Screws(4) #8 Split Lock Washers(4) #8 Flat Washers(1) Cable Clamp(1) Vehicle Hardwire Charger

Socket To Socket Length

6.35cm (2.5")

Hole Pattern

4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter

Ball Size

C Size ( 3.81cm (1.5") )

Materials

SteelMarine-grade aluminumHigh strength composite

Packaging Type

Box

Output Voltage

5V - 12V @ 3A max
