The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

GDS® Uni-Conn™ Powered Tilt & Swivel Dock with PoE - Gray

SKU Copied
SKU: RAM-GDS-DOCK-D14-U3E-GRY
UPC Copied
UPC: 793442023996

GDS® Uni-Conn™ Powered Tilt & Swivel Dock with PoE - Gray
Copy SKU
SKU: RAM-GDS-DOCK-D14-U3E-GRY
Copy UPC
| UPC: 793442023996

The GDS Uni-Conn Powered Tilt & Swivel Dock with PoE - Gray (RAM-GDS-DOCK-D14-U3E-GRY) is a free-standing, powered dock for devices enclosed in an IntelliSkin Thin-Case with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, ideal for customer-centric industries like retail, hospitality, food service, and more. Easily dock and undock your device with the assistance of the mechanical attachment mechanism. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS Uni-Conn adapter via RJ45 connection. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. The light gray aesthetic is ideal for sophisticated, bright workplaces. One Dock to Connect Them All Always Protected. Always Connected.

Features
  • Light gray, free-standing Kiosk dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • GDS® connector and pogo pins provide charging via Power over Ethernet (PoE); Mechanical attachment mechanism allows for quick docking and undocking
  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
  • Weighted base with rubber pads prevents kiosk from moving
  • Backed by a 3-year warranty

Information

Information

Hardware Included
(1) RAM® PoE to PD Charging Module
Product Dimensions
Height from Base to Tilt Bolt: 14.02cm (5.52") Base Width: 13.03cm (5.13") Base Depth: 16.84cm (6.63")
Materials
High Strength Composite
Packaging Type
Box
Output Voltage
USB PD 3.0:5V @ 3A9V @ 2.2A12V @ 1.7A
Power Output
24W Max
Input Connector
JST Male Connector
Input Cable Length
1.5 Meters
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-GDS-CHARGE-POE-PDU

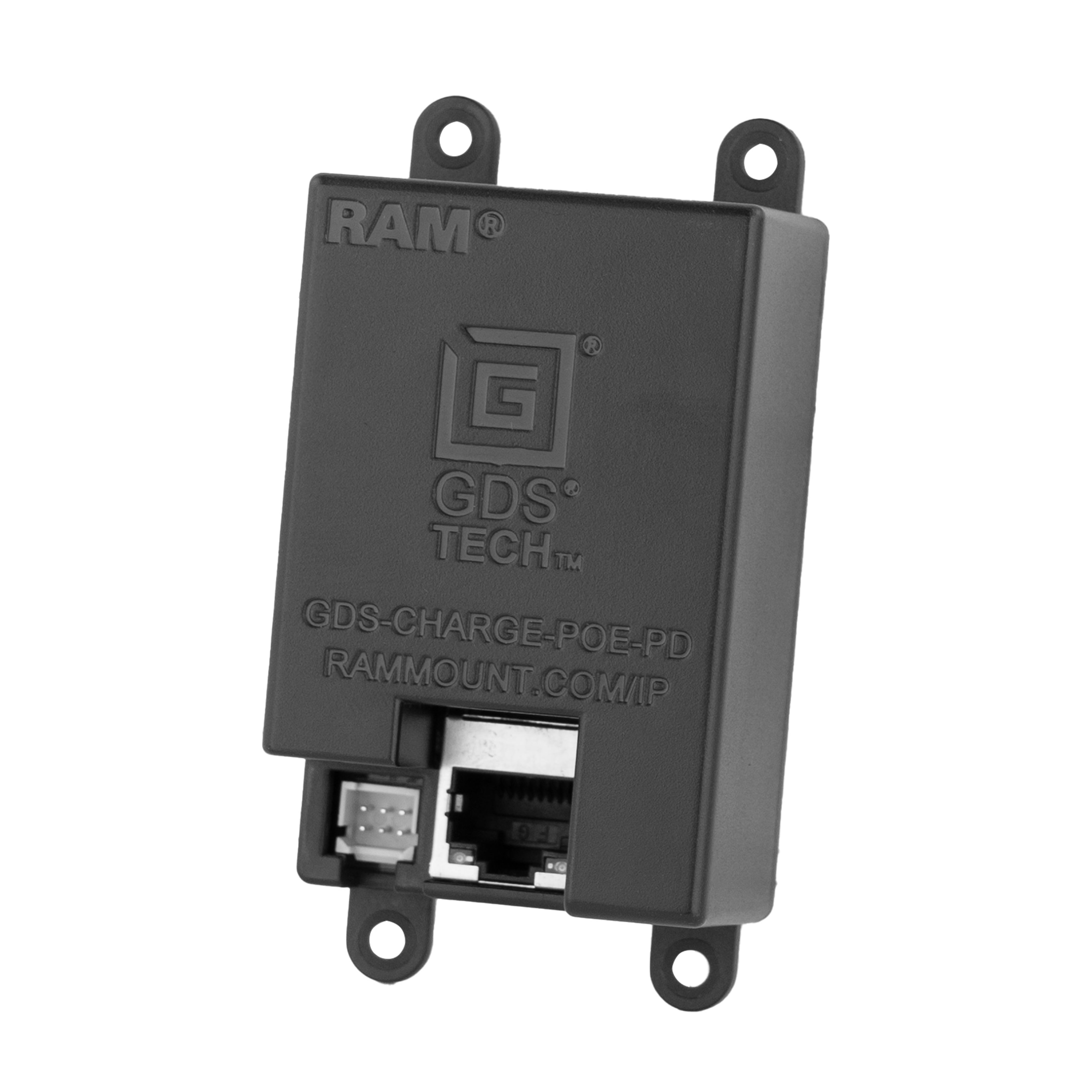

RAM® PoE to Power Delivery Charging Module with JST & RJ45
