The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

GDS® Key Locking Form-Fit Holder for Zebra ET5x 8.3" & 8.4" Series

SKU Copied

SKU: RAM-HOL-ZE10KLU

UPC Copied

UPC: 793442014161







GDS® Key Locking Form-Fit Holder for Zebra ET5x 8.3" & 8.4" Series

Copy SKU
RAM-HOL-ZE10KLU SKU: RAM-HOL-ZE10KLU

Copy UPC
793442014161 | UPC: 793442014161

The GDS Vehicle Dock features a key-locking form-fit design specifically for the Zebra ET5x 21.08cm (8.3") & 21.34cm (8.4") series tablets, including cutouts leaving all buttons and ports exposed. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM 2-hole diamond bases for device mounting and features a cable management system.

Features

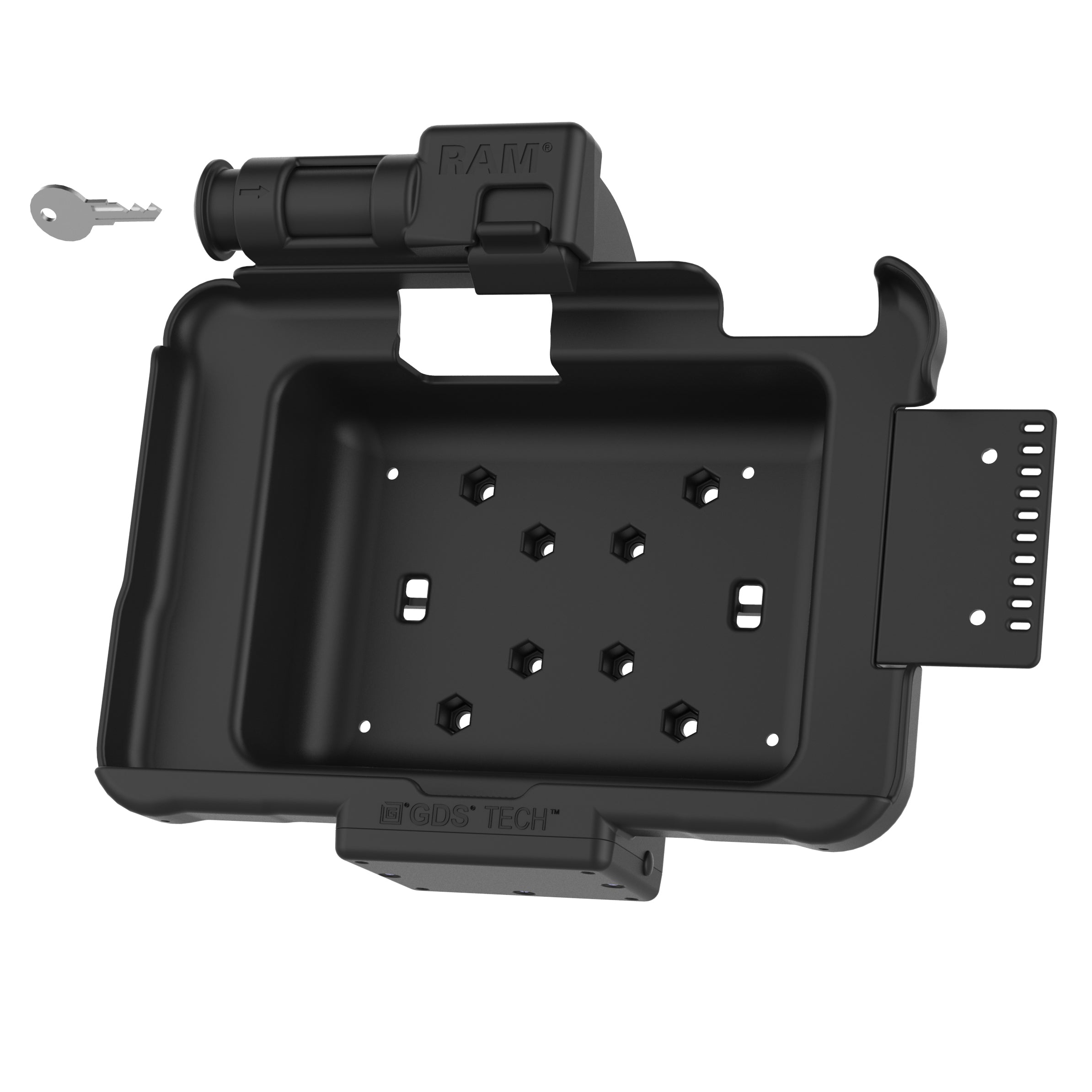

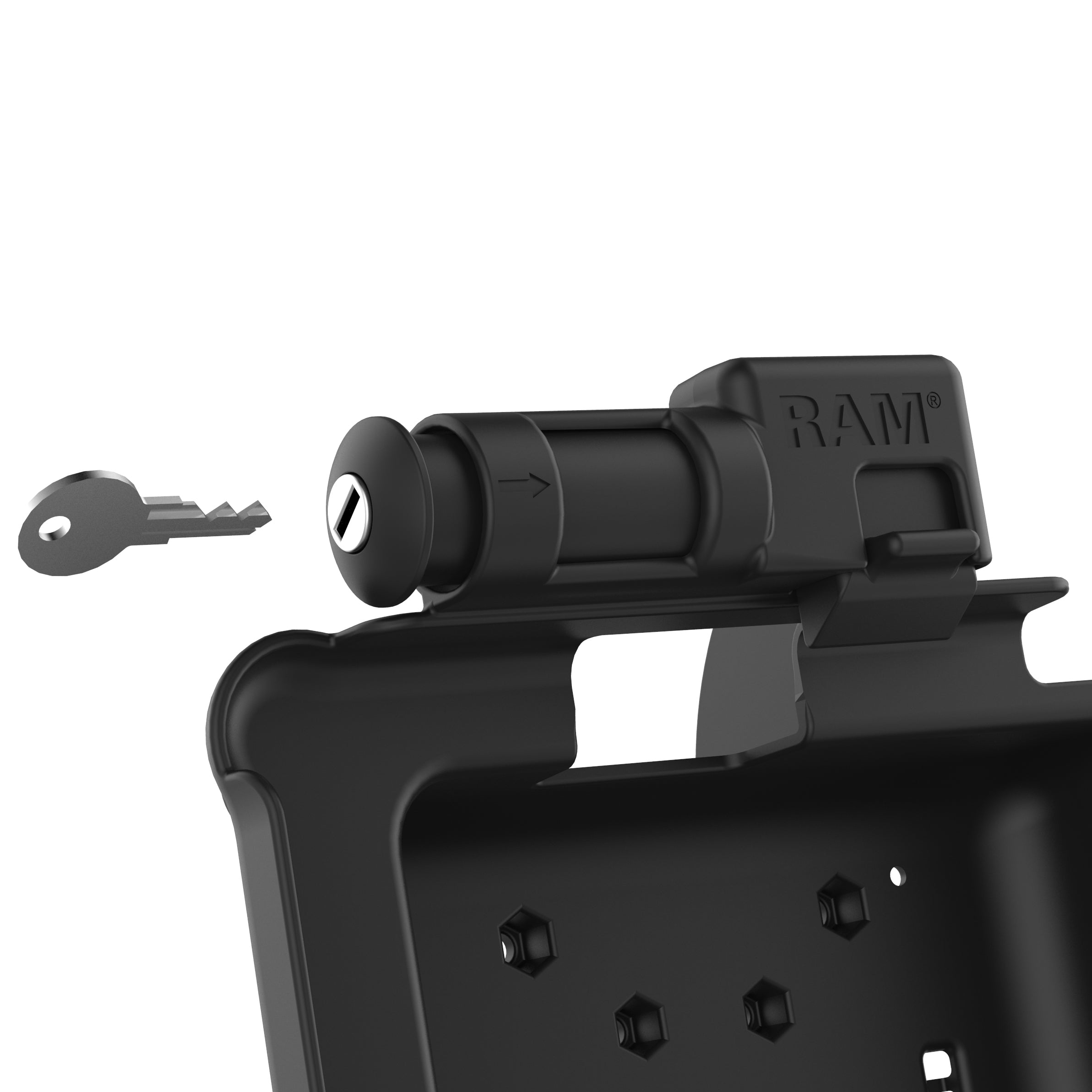

Spring-loaded key-locking form-fit holder perfectly secures the Zebra ET5x 21.08cm (8.3") & 21.34cm (8.4") series tablets with Rugged Frame; includes set of keys for locking capabilities

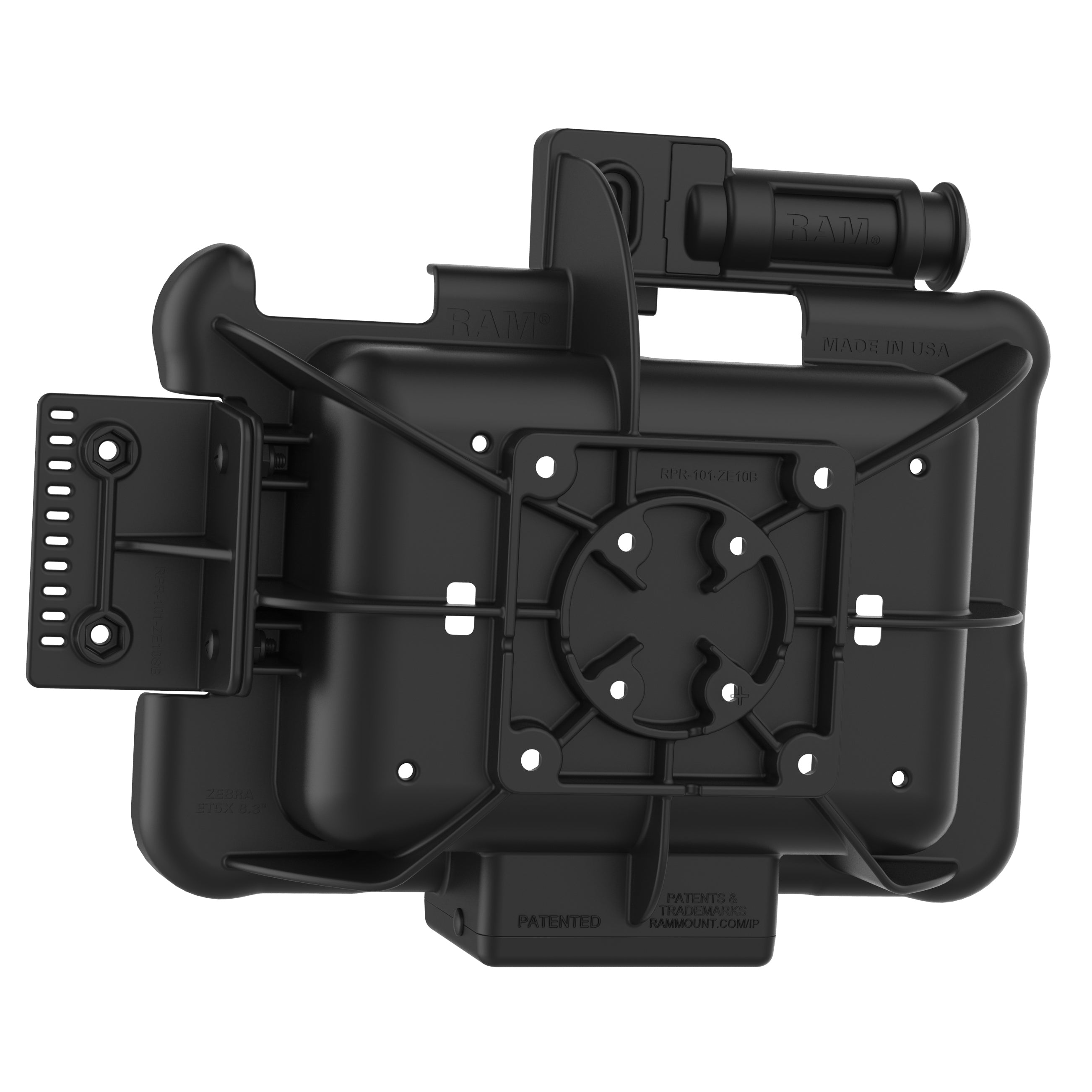

Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery; tablet scanning works while tablet is docked
Backed by a lifetime warranty

Tags: 75 x 75 VESA, AMPS 4-Hole, Custom Form-Fit, ET56, ET5x 8.3" & 8.4", GDS Dock, GDS® Tech™, Holders, Key Locking, material-handling, RAM-HOL-ZE10KLU, Tablet, Vehicle Dock, Zebra

Information

Resources

Compatible Devices

Information

Product Weight

0.70 kg (1.55 lbs)

Hardware Included

(2) Keys(1) Side bracket for accessory mounting and strain relief(4) #8-32 x 5/20.32cm (8") Machine Screws(2) #8-32 x 1/5.08cm (2") Machine Screws(6) #8-32 Nylock Nuts(4) #10-24 x 5/20.32cm (8") Machine Screws(4) #10-24 Nylock Nuts(6) Small Cable Ties

Hole Pattern

75 x 75mm VESA4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")

Materials

High strength composite

Packaging Type

Poly Bag
